QHC-350 / IMA-3D beveling turning mechanism

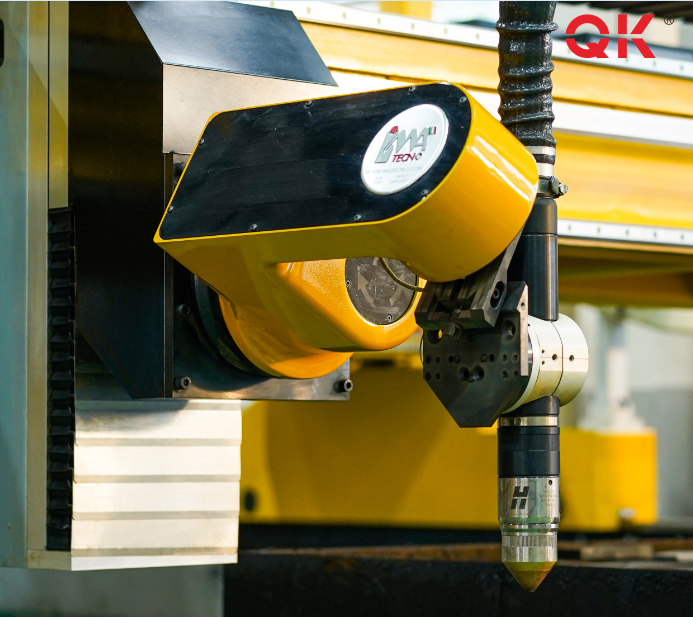

Kunshan Qiankun and Italy IMA Technology Machinery Technology Co., Ltd. launched a new generation of QHC-350 / IMA-3D groove cutting rotation mechanism in independent research and development.

This turning head device has high strength, high precision, high strength, smooth and smooth and fluid-free characteristics. The retorning head device consists of three parts: rotary mechanism, lifting mechanism, and anti-collision device.

Kunshan Qiankun and Italy IMA Technology Machinery Technology Co., Ltd. launched a new generation of QHC-350 / IMA-3D groove cutting rotation mechanism in independent research and development.

This turning head device has high strength, high precision, high strength, smooth and smooth and fluid-free characteristics. The retorning head device consists of three parts: rotary mechanism, lifting mechanism, and anti-collision device.


  • Can be used with a variety of plasma, such as the plasma cutting system of Hypertherm, Kjellberg;

  • And Qk-NC Plus CNC system is perfectly matched, realizing plasma groove cutting and laser groove cutting;

  • A / B axis control, six axis five linkage, can complete straight cut, downhill cut, uphill cut;

  • Can cut the groove cuts such as V, Y, X;

  • The cutting gun pre-swings can be achieved, and the right angle is directly turned to cut, and the rudder is cut;

  • An arc pressure plug that is compensated along the cutting gun axis.




22



A axis

B-axis

Z-axis

model

MHMF042L1U1

MHMF042L1U1

MHMF042L1V1

Motor parameters

1.27nm 6000R

1.27nm 6000R

1.27nm 6000R

Reducer

F2C-A15-89

F2C-A15-89

-----

Speed ​​ratio

1/89

1/89

-----

Primary pulley

-

26 teeth

-----

driven wheel

----

60 teeth

-----

Maximum torque

113nm

260nm

-----

Maximum working speed

73.03R / min

31.64R / min

2M / s

Axial speed

4.92 ° / s

82.82 ° / s

-----

Encoder

Absolute

Axial stroke

-----

-----

≥ 300mm

Rail specification

-----

-----

20mm

Screw specifications

-----

-----

20mm

Silk guide rail

-----

-----

5mm

External load capacity

-----

-----

200n

weight

-60kg

Axial shift

60 °

60 °

-----
