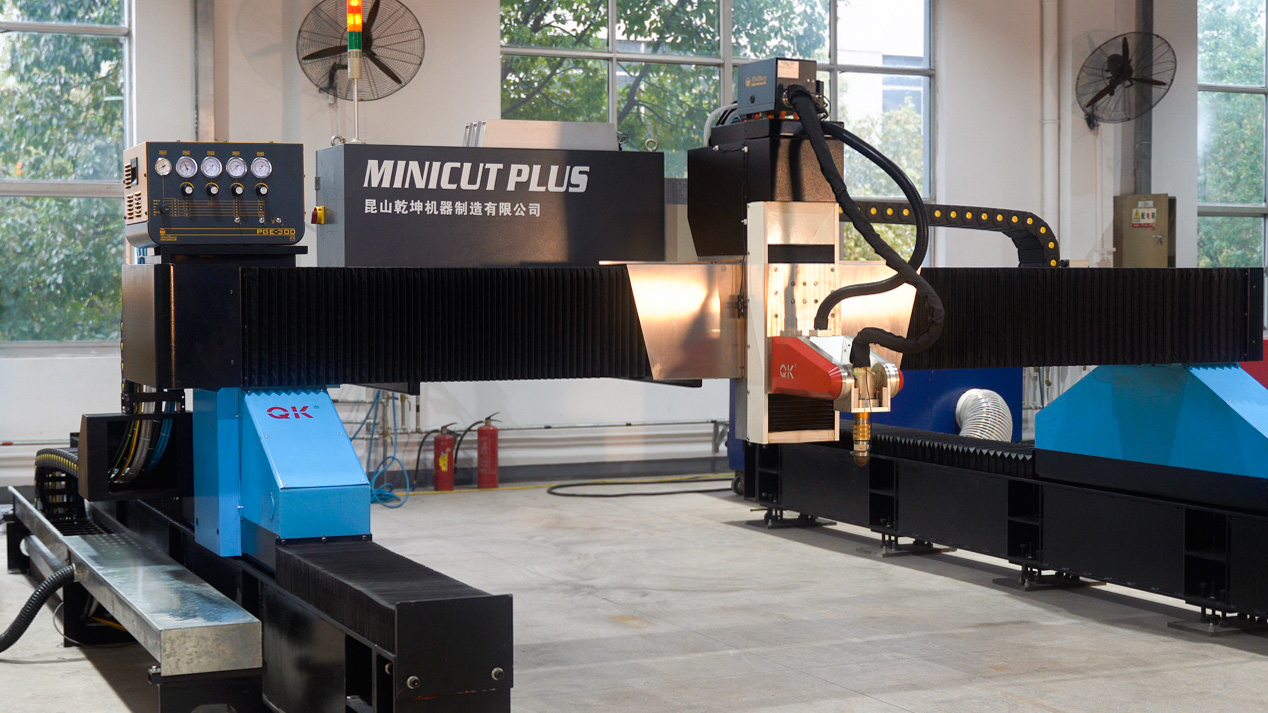

After years of research and practice, Qiankun's technical team has developed a new generation of QHC-300QK/AB-3D PRO bevel cutting System. The bevel cutting system is made of high-strength wear-resistant aluminum alloy. It has two-way kinematic chain. Fully enclosed internal harmonic reducer and micro servo motor. Adapt to various harsh industrial conditions. It has higher precision and durability, and has a beautiful appearance.
Be used with a variety of plasmas, such as Hypertherm, Kjellberg's and etc;
Perfectly matched with QK-NC Plus EtheCAT CNC system to realize plasma bevel cutting and laser bevel cutting;
A/B axis control, 6-axis linkage, can complete straight edge cutting, cut down bevel and up bevel;
Cut V, Y, X bevel and other shapes;
Realize cutting torch pre-swing cutting, right-angle direct bend cutting, and mouse ear sharp corner cutting;
Arc voltage height regulator with motion compensation along the cutting torch axis.
name | Types of | A axis | B axis |
Assembly location | the way | Horizontal installation | |
size | mm | Width 76mm; height 200mm | |
weight | KG | 21KG | |
Swing stroke | Limit rotation angle | ±50° | ±50° |
spinning speed | Degree/sec | 90° | 90° |
Zero precision | —— | 1 arc minute | 1 arc minute |
Maximum bevel cutting angle | —— | ±45°(plasma cutting) | |
Bevel angle positioning accuracy | —— | 1 arc minute | 1 arc minute |
Rotating motor | —— | 400W/import | 400W/import |
Reducer | Brand | ALPHA custom/import | ALPHA custom/import |
Connection method | —— | Direct connection | Direct connection |
Motor parameters | —— | 1.3N/M | 1.3N/M |

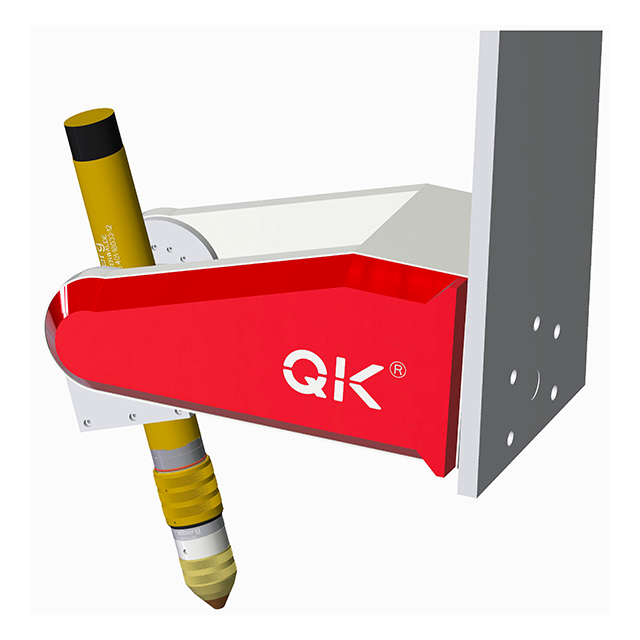

QK-3D Pro-AB Bevel Cutting Rotary Mechanism
Imported version of QK-3D Pro-AB groove cutting rotary mechanism:
Italy IMA Technology Machinery Technology Co., Ltd. was established in 2000. It is a company specializing in the production of various professional power mechanisms. The strong scientific and technological strength and high-quality expert team are to provide customers with complete solutions.

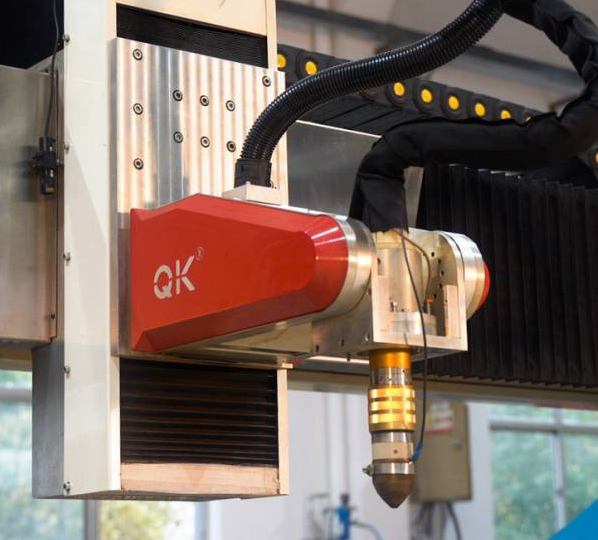

The IMA rotary head device used by Qiankun has the characteristics of high strength, high precision, high strength, smooth and smooth rotation without vibration. The slewing head device is composed of a slewing mechanism, a lifting mechanism and an anti-collision device.
A axis | B axis | Z axis | |
model | MHMF042L1U1 | MHMF042L1U1 | MHMF042L1V1 |
Motor parameters | 1.27NM 6000r | 1.27NM 6000r | 1.27NM 6000r |
Reducer | F2C-A15-89 | F2C-A15-89 | ----- |
Speed ratio | 1/89 | 1/89 | ----- |
Main pulley | - | 26 teeth | ----- |
driven wheel | ---- | 60 teeth | ----- |
Maximum torque | 113NM | 260NM | ----- |
Working speed | 73.03r/min | 31.64r/min | 2m/s |
Shaft speed | 4.92°/s | 82.82°/s | ----- |
Encoder | Absolute | ||
Axis stroke | ----- | ----- | ≥300mm |
Rail specifications | ----- | ----- | 20mm |
Screw specifications | ----- | ----- | 20mm |
Screw guide | ----- | ----- | 5mm |
External load capacity | ----- | ----- | 2000N |
weight | -60kg | ||
Shaft deflection | 60° | 60° | ----- |
