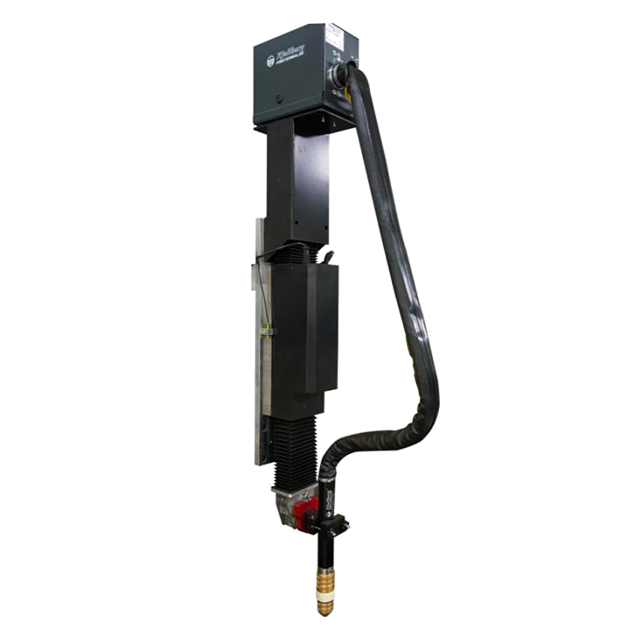

Q250 series Torch Lifting is an industry-approved cutting torch lifting. The height of the torch tip is constant to ensure a higher quality cutting surface. At the same time, QHC-250 can meet the technical requirements of different plasmas under all working conditions to provide a suitable initial perforation height.
Gear rack lifting method;
Ensure that the height of the plasma torch tip is constant to obtain high-quality cutting slopes;
QHC250 can meet all plasma technical requirements;
Closed-loop AC servo motor drive, rack and pinion drive, integrated with Sensor TH, complete plasma initial positioning and arc voltage control, realize fine hole cutting and fast cutting, with higher precision and faster response;
It can be integrated with Sensor TH to complete the initial positioning and arc voltage control of plasma cutting, and realize fine hole cutting and fast cutting.
Effective stroke 250mm, lifting speed 10m/min, acceleration up to 100mg, positioning accuracy +-0.1mm;
Fully sealed dustproof and waterproof design;
With plasma cutting troch anti-collision device.
