QLaserCut CNC Plane Fiber Laser Cutting Machine
You are here: Home » Products » Cutting Machine » QLaserCut CNC Plane Fiber Laser Cutting Machine
Share to:

QLaserCut CNC Plane Fiber Laser Cutting Machine

Qiankun has developed this QLaserCut CNC Plane Fiber Laser Cutting Machine. The workmanship is excellent. The transmission parts on the integral beam are treated with dust-proof protection. The laser cutting head has a camera to observe the cutting status.

Description

In order to adapt to the needs of domestic and foreign markets, Qiankun has developed this QLaserCutTM CNC Plane Fiber Laser Cutting Machine. The workmanship is excellent. The transmission parts on the integral beam are treated with dust-proof protection. The laser cutting head has a camera to observe the cutting status.

The cutting auxiliary gas and gas pressure can be switched via CNC system directly. The pressure and flow are digitally adjusted. Cutting parameters of various sheet thicknes in the CNC system can be used.

The high-precision Z-axis height controller accurately senses the distance between the cutting torch and the steel plate.The cutting torch automatically moves up and down and automatically adjusts the laser focus position. The fast-response Z axis can effectively avoid the collision probability of the laser cutting head.

QLaserCutTM is characterized by high precision, fast speed, and high efficiency. Each machine can perfectly complete 1:0.5 small hole cutting.

This machine is mainly developed for laser cutting of medium and thick plates, and is a good choice in the range of medium and thick carbon steel plates. It can cut 50mm thick carbon steel plate.



Features

  • The frame structure is reasonable, with active shock absorption function, good rigidity, sturdiness and durability;

  • First-line brand transmission and electrical components to ensure cutting accuracy and durability;

  • Stable QHC Torch lifting device and double lifting guide;;

  • Easy to cut the thick steel plate with multi-level perforation;

  • Can connect to MES;

  • Machine empty range speed 36 m / min, up to 0.4G acceleration can meet the need for sharp corners and small holes;

  • Longitudinal straight rails or high-precision rails;

  • Optional automatic rail-cleaning.



Configuration

  • Rail distance / mm: 2500-8000 (interval every 500mm);

  • Operating console: Q-Panel (optional follow-up and separate operator platform) 19-inch industrial grade LED touch screen display;

  • CNC system: QK-NC PLUS CNC system (German Beckhoff);

  • Laser cutting head: Multiple sets of laser cutting heads and lifting devices;

  • Z-axis height control; high-precision capacitive height controller accuracy is as high as ± 0.05 mm;

  • Laser: All models of domestic and imported laser sources are configured;

  • 3D bevel device: Q350PRO 3D Bevel Cutting System;

  • Electrical control cabinet: independent electrical control integrated circuit board, IP52 level;

  • Drive servo system: first-line brand AC servo drive system;

  • Reducer: First-line brand precision planet reducer;

  • Machine standard rack cleaning wheel;

  • Safety protection device: safety grating, three-color alarm, operational platform, stroke limit, total power switch, emergency stop switch.


Peripheral device option

Dust removal workbench / water cooling unit / industrial smoke purifier / host power supply regulator / laser air assembly percentage dust box.



Cutting sample

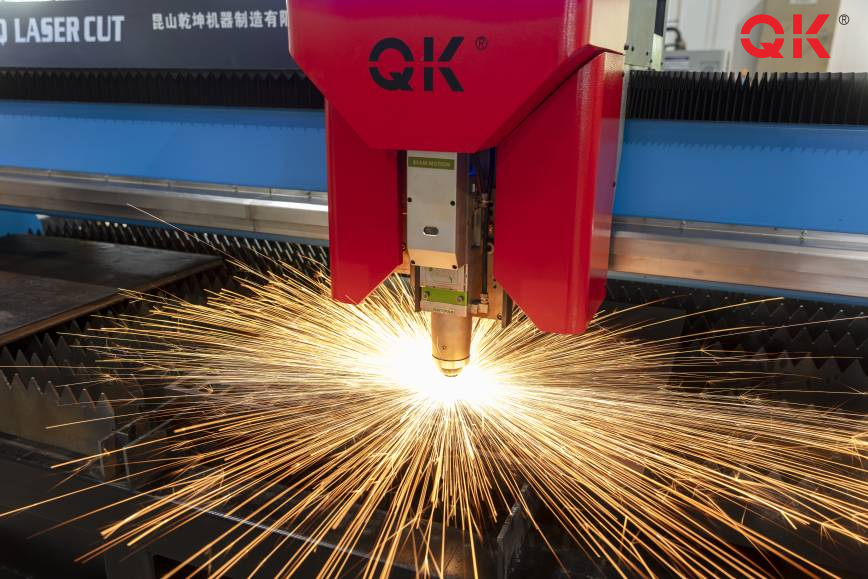

WPS图片-修改尺寸
